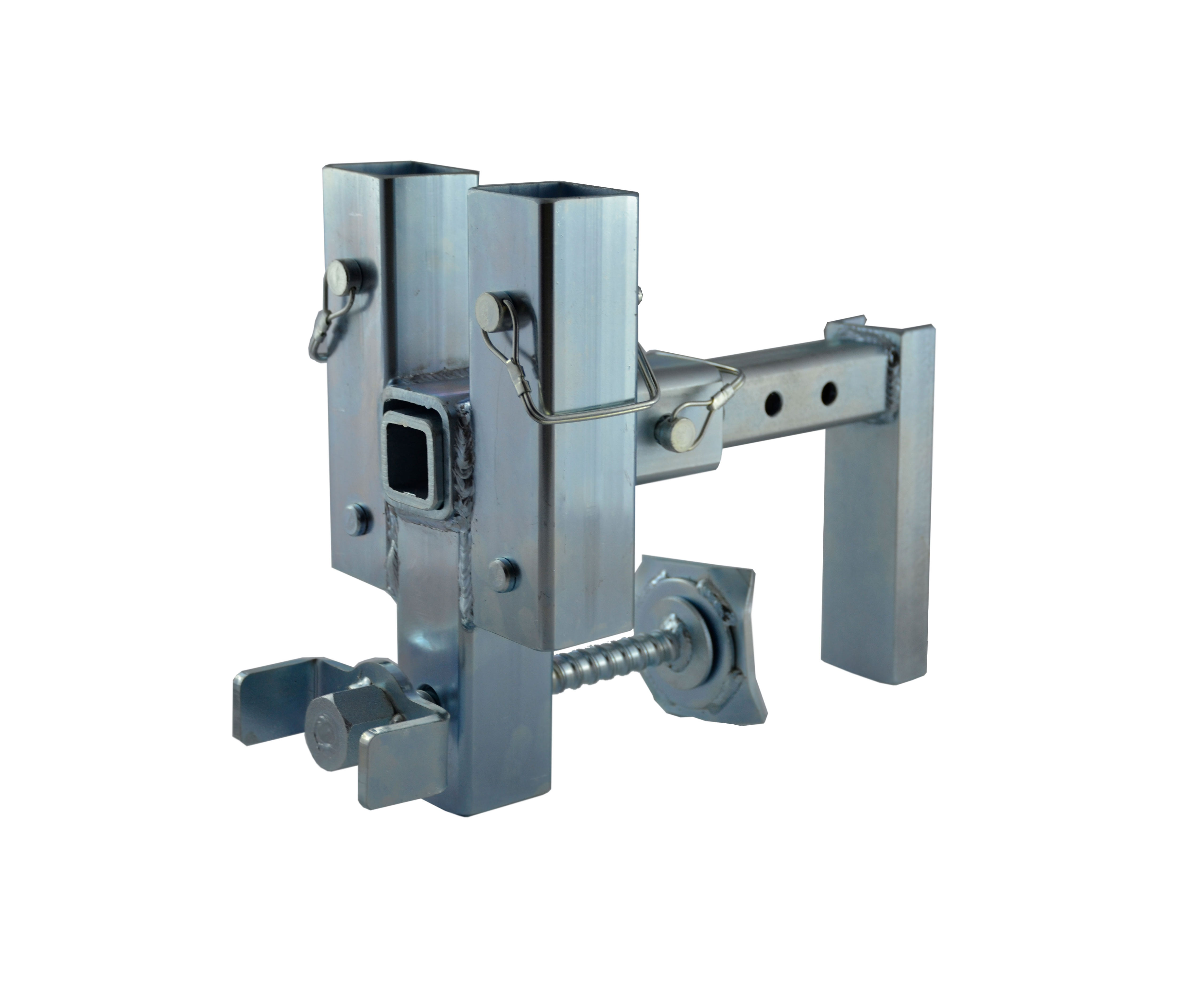

Trench Box Clamp System
Manufacturer: Garlock Safety
Meets OSHA Requirement 1926.502(b)
Alternate Product Views
FEATURES
OSHA compliant leading edge fall protection system for use with trench boxes or trench shields.
Total Trench Box Safety
Trench boxes provide safety for workers down in the trench. What about workers working near the fall edge of the trench? For above-ground fall prevention rely on Garlock Safety System’s heavy-duty trench box clamp and RailGuard 200™ railing.
Easy Setup
One person can quickly install the Trench Box Clamp to trench boxes ranging from 1” to 9” thick. The heavy-duty tensioner screw can be tightened by hand or for maximum productivity use a speed wrench. Use tools to reach the required torque of 90-foot pounds.

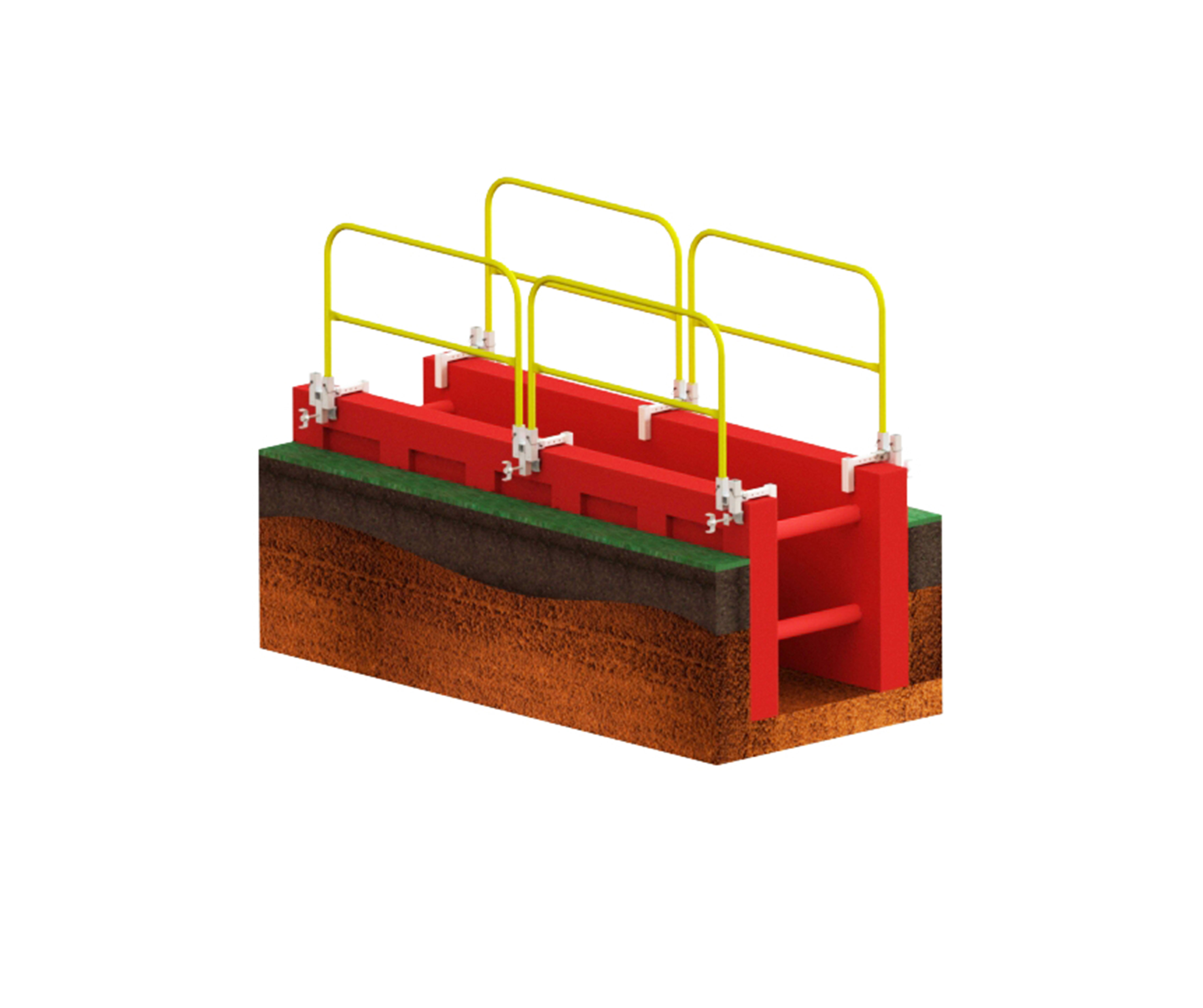

Install the railing and workers are now protected and can safely work near the trench edge.
Meets OSHA fall prevention requirements
Heavy duty steel construction, zinc plated
The wide adjustment range for use on trench boxes from 1” to 9” thick
Quick and easy installation
Select from a wide range of RailGuard 200 railings including adjustable rails
Total Trench Box Safety
Trench boxes provide safety for workers down in the trench. What about workers working near the fall edge of the trench? For above-ground fall prevention rely on Garlock Safety System’s heavy-duty trench box clamp and RailGuard 200™ railing.
Easy Setup
One person can quickly install the Trench Box Clamp to trench boxes ranging from 1” to 9” thick. The heavy-duty tensioner screw can be tightened by hand or for maximum productivity use a speed wrench. Use tools to reach the required torque of 90-foot pounds.
Install the railing and workers are now protected and can safely work near the trench edge.
Meets OSHA fall prevention requirements
Heavy duty steel construction, zinc plated
The wide adjustment range for use on trench boxes from 1” to 9” thick
Quick and easy installation
Select from a wide range of RailGuard 200 railings including adjustable rails
SPECIFICATIONS
Clamping range - 1” to 9”
Rail height - 42” above trench box wall
Finish - Zinc plated
Weight - 14 lbs.
Torque requirements - 90 foot-pounds
Due to continuous improvement, specifications are subject to change without notice.
Part Numbers and Description
425-001-601 - Trench Box Clamp, 1-9” clamping range, zinc plated
402335S - 10.0 ft. Rail – safety yellow
404977S - 8.0 ft. Rail – safety yellow
402337S - 5.0 ft. Rail – safety yellow
404654G - 10.0 ft. Rail – galvanized
406930G - 8.0 ft. Rail – galvanized
404656G - 5.0 ft. Rail – galvanized
Rail height - 42” above trench box wall
Finish - Zinc plated
Weight - 14 lbs.
Torque requirements - 90 foot-pounds
Due to continuous improvement, specifications are subject to change without notice.
Part Numbers and Description
425-001-601 - Trench Box Clamp, 1-9” clamping range, zinc plated
402335S - 10.0 ft. Rail – safety yellow
404977S - 8.0 ft. Rail – safety yellow
402337S - 5.0 ft. Rail – safety yellow
404654G - 10.0 ft. Rail – galvanized
406930G - 8.0 ft. Rail – galvanized
404656G - 5.0 ft. Rail – galvanized
