SKYLIGHT PROTECTION & SAFETY
For Rent or Purchase

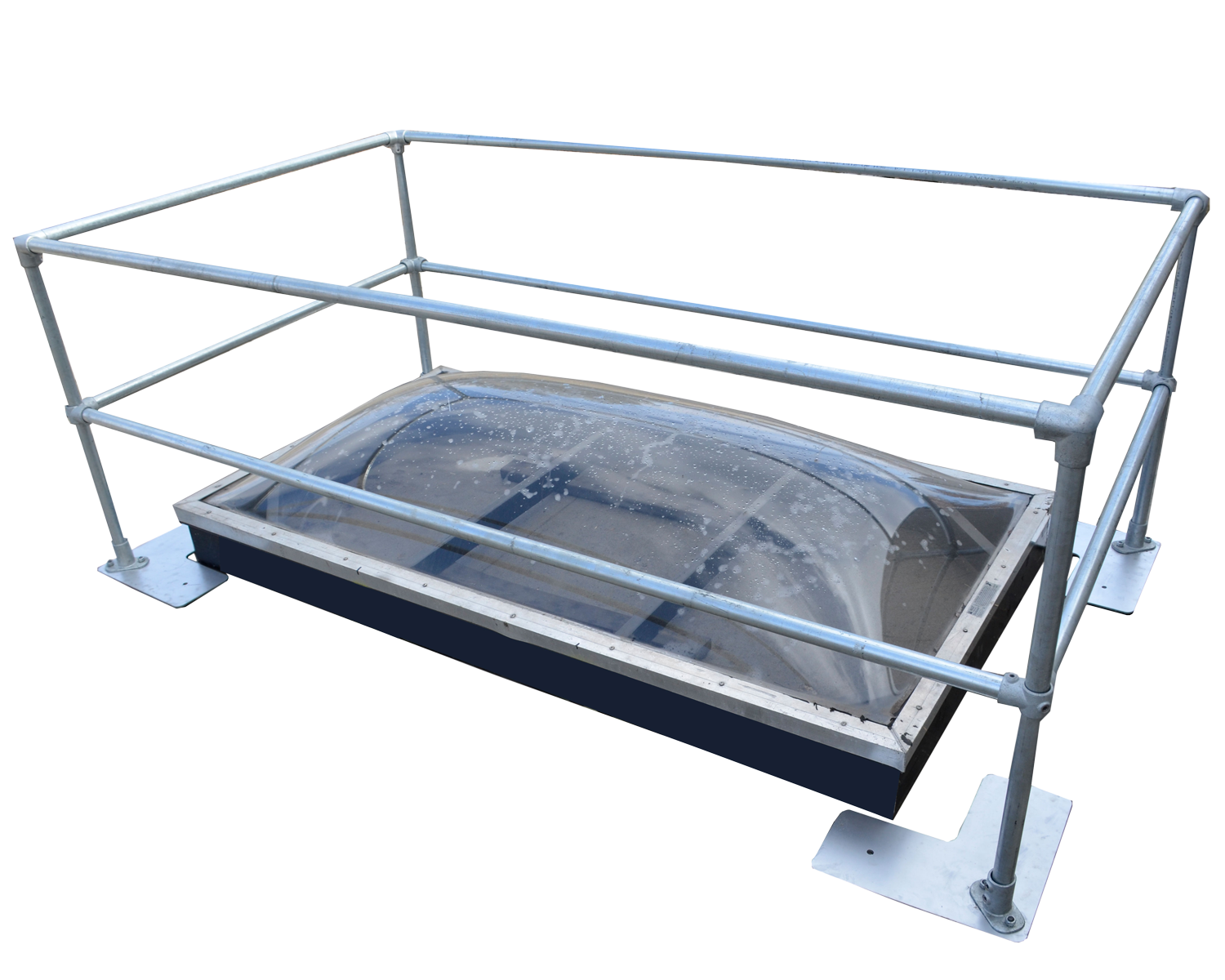

SkyGuard
Manufacturer: Garlock Safety
Meets OSHA Requirements 1926.501(b) (4) and CAL OSHA 3209(b)
Alternate Product Views
FEATURES
OSHA compliant with third-party certification
Modular design for out of box fit or simple on-site tube cutting for custom sizes
Galvanized bases and fitting for lasting durability
Rail and stanchions available with galvanized plating , safety yellow or in custom colors
Bases come standard with rubber pads to protect delicate roofing materials
Freestanding non-penetrating design prevents leaks and maintains roof warranty
Fits skylights from as small as 3’ up to 9’ in either direction
Modular design for out of box fit or simple on-site tube cutting for custom sizes
Galvanized bases and fitting for lasting durability
Rail and stanchions available with galvanized plating , safety yellow or in custom colors
Bases come standard with rubber pads to protect delicate roofing materials
Freestanding non-penetrating design prevents leaks and maintains roof warranty
Fits skylights from as small as 3’ up to 9’ in either direction
SPECIFICATIONS
Top rail height - 42”
Mid rail height - 20”
Rails and stanchions - 1.66” outer diameter, .14” wall thickness, schedule 40 pipe
Rail and stanchion finish - Galvanized, safety yellow or custom colors
Base dimensions - 18” X 18” X ¼”
Base and fitting finish - Galvanized plated
Dimensions - Small: fits 48” X 60” skylights without cutting, can be cut to fit 36” X 60”
Large: fits 96” 110” skylights without cutting, can be cut to fit 36” X 100”
CAL OSHA - CAL OSHA compliant versions available with a 8’ maximum rail length
Due to continuous improvement, specifications are subject to change without notice.
Part Numbers and Description:
443-002-600 - 48” to 60” wide by 48” to 60” long, galvanized, no cutting required.
36” to 60” wide by 36” to 60” long, galvanized, cutting required.
443-004-600 - 96” to 110” wide by 96” to 110” long, galvanized, no cutting required.
36” to 110” wide by 36” to 110” long, galvanized, cutting required.
443-003-001 - 48” to 60” wide by 48” to 60” long, safety yellow, no cutting required.
36” to 60” wide by 36” to 60” long, safety yellow, cutting required.
443-005-001 - 96” to 110” wide by 96” to 110” long, safety yellow, no cutting required.
36” to 110” wide by 36” to 110” long, safety yellow, cutting required.
